Poultry House Butler PHB2-RH Controls Flaps, Light, Heating, Ventilation, Framing Device with Self-Locking Chicken Flap and Light Control

Product Description

JOSTechnik – Poultry House Butler PHB2

Automatic poultry butler with control for flaps , control for heating and ventilation, day and weekend programme or two closing and opening times per day as well as control of the lighting with simulation of sunrise and sunset for an optimal light supply for the poultry. This is especially important in winter on days with little daylight.

The functions are triggered by data from sensors for light, temperature and humidity as well as a timer. Numerous combinations of these data allow a wide range of setting options for controlling the house technology.

Real emergency stop or emergency opening function:

Should an animal be under the slider during the closing process, the motor is automatically stopped and the flap is immediately opened again. The closing process is repeated several times automatically. No animal has to free itself under the resting load of the flap, as is so common with all other manufacturers!

Optional direct connection options:

Connection for external remote display of flap status ( OPEN or CLOSED). Outdoor light sensor. (If PHB2 is installed indoors, an external outdoor light sensor is required). Attraction light 12V, up to 12W Fan (to bring in fresh air or vice versa to exhaust stale air) Radio remote control for flap control and light External temperature sensor External humidity sensor GSM module for smartphone (via APP for Android). Extra SIM card required. Connection module for control of 230V consumers.

The Poultry House Buttler PHB2 can be purchased as a stand-alone unit, as a frame unit or as a set with our different sized flaps, with or without self-locking to protect against predators.

Mounting instructions:

Never operate the damper actuator without the weight attached. Except for ready-assembled frame units from JOSTechnik, you always need an additional connecting cable. Never attach the nut on the pull cable directly to the flap or slide.

Scope of delivery:

PHB2 with integrated light sensor, menu-driven display, dimensions: width 120 mm, length 120 mm, height 55 mmCoiled pull cord (The connecting cord between the damper actuator and the damper is not included in the scope of delivery, except in the case of pre-assembled frame units).230 V / 12 V DC 3A plug-in power supply unit (JOSTechnik art. no.: 476) (Approved for indoor use only!)Depending on your selection, the solo unit or the completely assembled frame unit in the selected size with fixing material or the set as solo unit plus flap in the selected size and type. A connecting cable between the damper actuator and the damper is not included in the scope of delivery.

Multitalent PHB2

Compatible with all JOSTechnik flaps

The PHB2 can work with all JOSTechnik dampers. Also for dampers with self-locking. Choose from the different sizes with or without self-locking (SV).

Due to the manufacturing process, there may be slight scratches on the aluminium parts of the flaps, which do not impair the functionality and therefore do not represent a defect!

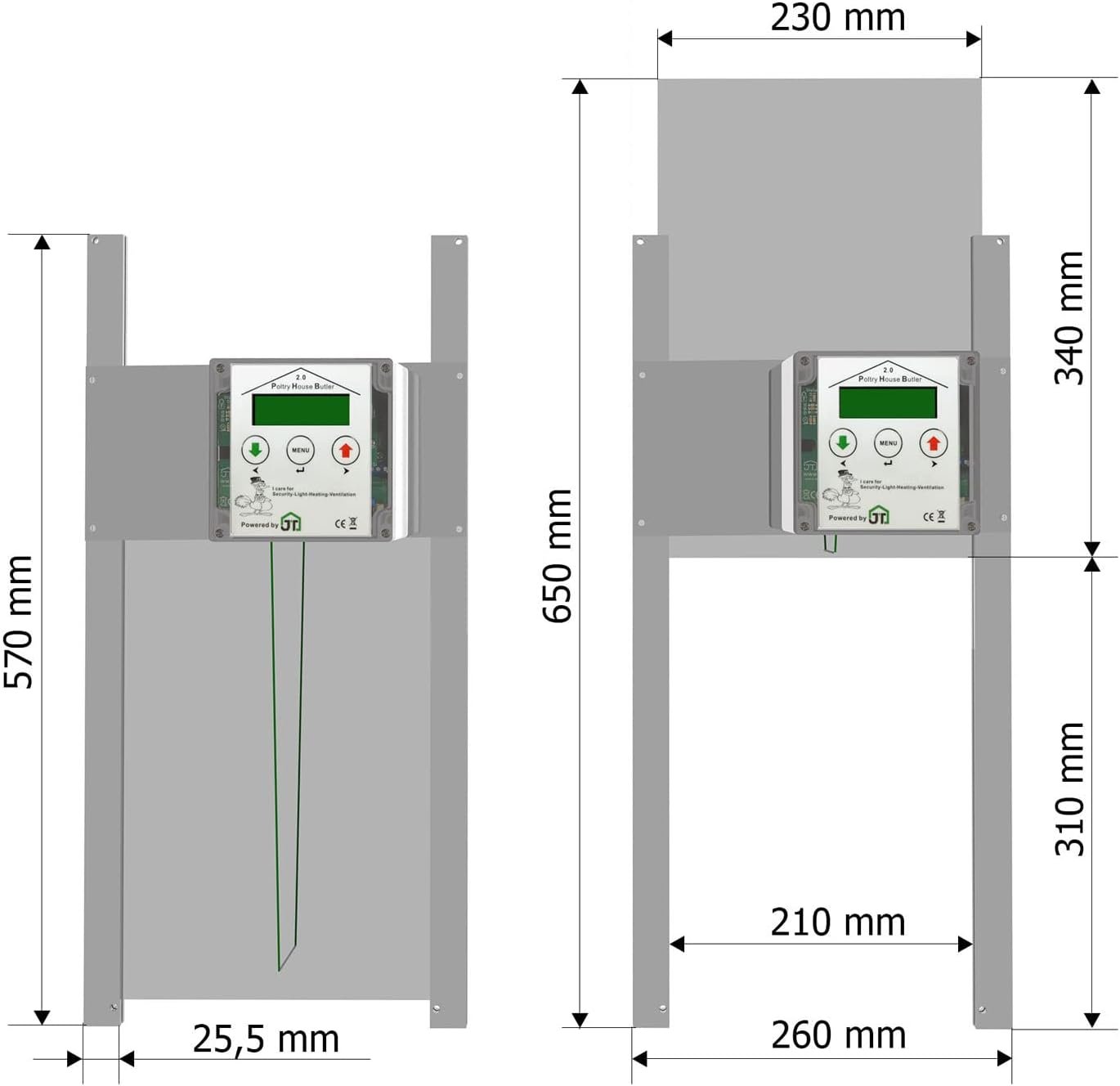

230x340mm o. 230x340mm SV 300x450mm o. 300x450mm SV 340x550mm o. 340x550mm SV 420x370mm BIO Chicken 485x740mm XXL

JOSTechnik Chicken Flap PHB2 – Pultry House Butler 2.0

Our all-rounder with the most functions

The PHB2 has a multi-line display that can be used to change all settings via a multi-language menu at the touch of a button. The following settings are possible and can be changed:

Brightness value slider open, brightness value slider close Current time, Open slider switching time, Close slider switching time Outdoor temperature too cold for „Do not open slider“. Switch on indoor temperature for heater or fan (switch off automatically) Switching on the barn lighting depending on the outside brightness (switching off is automatic) Start „Sunrise“ in the morning / Start „Sunset“ in the evening

Solo, frame or set with separate power supply

PHB2 Solo

The PHB2 solo device can be combined with all conventional sliders / flaps up to max. 2kg weight / tractive force. Automatically open and close barn doors. Control an attraction light, fan, heating or complete light simulations with sunrise and sunset.

A connecting rope between the flap actuator and the flap is not included in the scope of delivery.

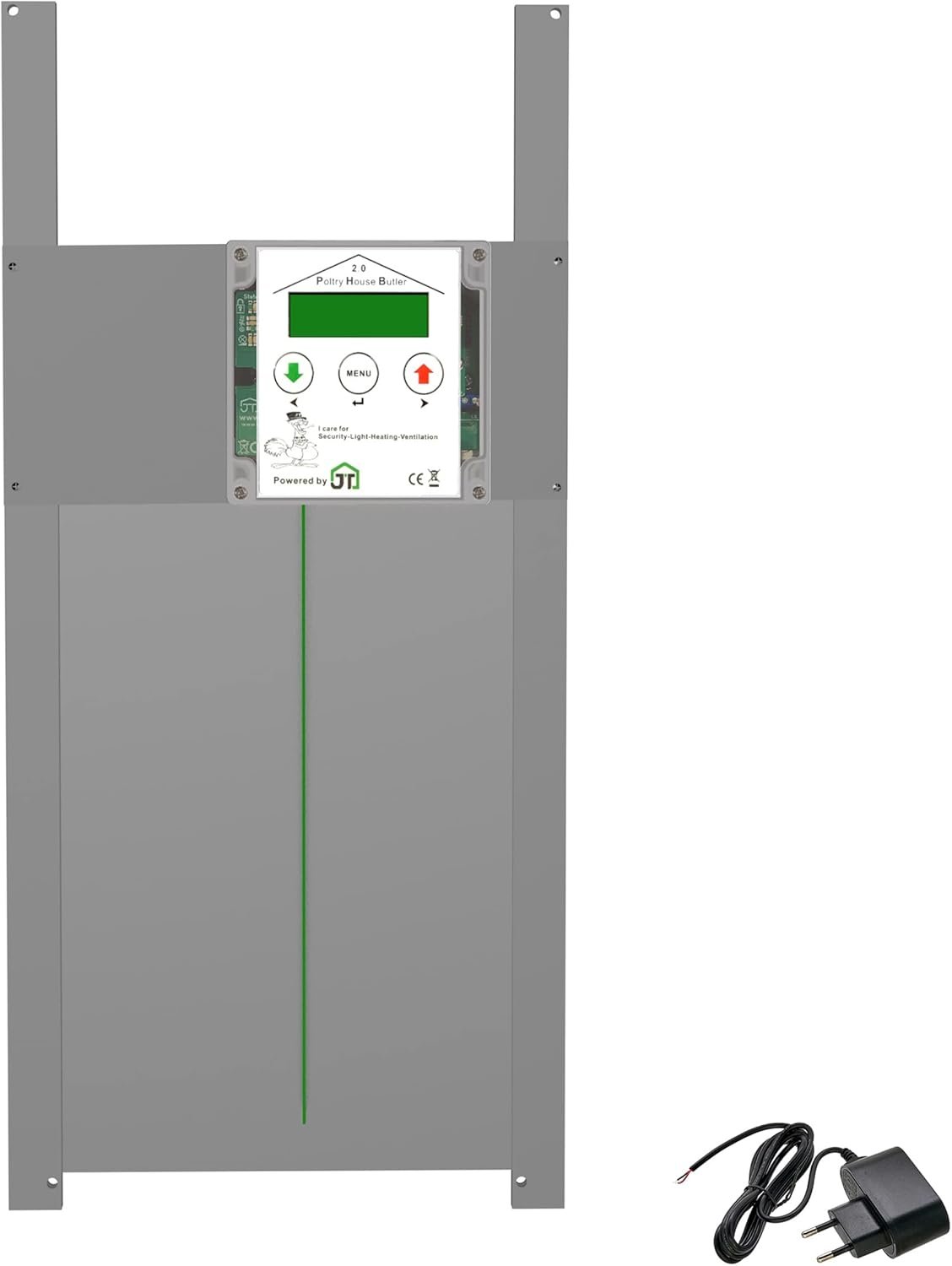

PHB2 Frame unit with self-locking mechanism

PHB2 frame unit are completely prepared for commissioning. Attach the set to the 4 fastening points in the frame in front of the barn entrance. Supply with voltage and you are ready to go. The flap is preset to open at approx. 7 a.m. at dusk and to close at approx. 7 p.m. or at dusk.

PHB2 Set with flap – Accessories in the JOSTechnik Shop

Put together a PHB2 set yourself. Choose the optimal size of flap for your animals and learn more about the matching accessories. All parts are coordinated and compatible with each other. Visit our shop. Suitable external sensors for light, temperature, humidity. Directly connectable LED lamps and fans. Switch module for 230V consumers.

A connecting cable between the damper actuator and the damper is not included in the scope of delivery.

Main function of the light control

Provision of the optimum amount of light depending on the current daylight duration:

The light control automatically switches on the barn lighting at a time you can set and dims the light from 0% to 100% (sunrise) within a preset time.The barn lighting is automatically switched off when the associated light sensor detects a presettable outdoor brightness.If the outdoor light brightness is already reached before dimming begins (summer), the dimming process is not started.In the evening, the barn lighting is automatically switched on by the associated light sensor.Depending on a time you can set, the dimming process starts from 100% to 0% (sunset).Afterwards, the lighting is switched off completely at the set time.Here, too, the light control only becomes active when the outdoor brightness falls below a preset level (in summer, the dimming process is not carried out most of the time).

Temperature sensor & connection options

There is a temperature sensor in the PHB2 that measures the temperature of the environment and can thus trigger various switching operations:

When used with an indoor temperature sensor, an electric heating lamp can be switched on (if the stable temperature is too low) or a fan can be switched on for 12V DC for max. 5 hours.For 230V accessories, an additional circuit breaker for mains voltage is required in a separate housing.When used with an outdoor temperature sensor, the opening of the flap can be delayed or prevented at low outdoor temperatures.

More connection options

Non-dimmable 230 V lighting as so-called attraction light, heating or fan can be connected and switched using connection modules. The opening of the flap can be prevented or delayed at low outside temperatures; for this purpose, a temperature sensor is available in the unit or can be connected externally.

Display

The PHB2 has a multi-line display that can be used to change all settings via a multi-language menu at the touch of a button. The following settings are possible and can be changed:

Brightness value slider open, brightness value slider closeCurrent time, switching time Open slider, switching time Close sliderOutdoor temperature for do not open sliderSwitch on indoor temperature for heater or fan (switch off automatically)Switching on the barn lighting depending on the outdoor brightness (switching off is automatic) Start „Sunrise“ in the morning / Start „Sunset“ in the evening

The following states and values are shown in the main display:

Day and time / software version alternating withDay and time / temperature outside*, temperature inside*, open or closed, status light sensor

Menu settings Examples

PHB2 closes and opens only by timer, not by light sensorPHB2 closes and opens only by light sensor, not by timePHB2 closes and opens only by light sensor + adjustable closing time delayPHB2 closes and opens by time switch and light sensorPHB2 closes and opens by timer or light sensorPHB2 closes and opens manually with push-button or radio remote control or in combination with timer and/or light sensorAutomatic heating of the barn when the indoor temperature falls below a selectable level. The heating is switched off when an adjustable upper heating temperature is reached.Automatic ventilation of the barn when a selectable indoor temperature is exceeded. The ventilation is switched off when an adjustable lower ventilation temperature is reached.

Spezifikationen

Dimension solo unit width 120 mm, length 120 mm, height 55 mm Power supply Plug-in power supply 230V / 6V DC 3A (JOSTechnik art. no.: 476) Power consumption idle approx. 20 mA (PHB only) , approx. 100 mA incl. additional modules without lighting approx. 3 A incl. dimmable lighting (max. 30 W) Current carrying capacity Dimming output – max. 2.5 A with max. 30W lighting Current carrying capacity Attraction light output – max. 1.0 A with max. 12 W illumination Current carrying capacity Fan output – max. 1.0 A with 1 piece JT stall fan Current carrying capacity Connection module JT-Rel HLB – Load side max. 2500 W Internal rope length ca. 0,8 m Flap weight (lifting load) ca. 400 g / ca. 2000 g Minimum / Maximum Weight approx. 300 g (without slider)

Add To Basket

Add To Basket

Customer Reviews

—

—

4.3 out of 5 stars 201

—

3.3 out of 5 stars 13

4.0 out of 5 stars 81

Price

— no data

— no data

— no data

— no data
€196.00€196.00 €159.00€159.00

Timer
no data

✓

✓

✓

✓

✓

Emergency stop and emergency opening

✓

✓

✓

✓

✓

✓

Temperature sensor
no data
no data
no data

✓
no data
no data

Heating and ventilation control
no data
no data
no data

✓
no data
no data

Control attraction light
no data
no data

✓

✓

✓

✓

Battery operation
no data
no data
no data
no data

✓

✓

Day and weekend programme
no data
no data

✓

✓
no data
no data

Two closing and opening hours per day
no data
no data

✓

✓
no data
no data

Automatic opening and closing: automatically opens and closes a self-locking flap in the fixed frame at dusk and/or by time and/or in combination with the temperature sensor.
Self-locking: flap locks when closed and automatically unlocks when opened. No predator can slide this flap open once it is closed
Low assembly effort: the frame device is attached to the wall using the 4 supplied screws above the opening hole – done
REAL EMERGENCY STOP AND EMERGENCY OPENING FUNCTION: If there is an animal under the flap when closing, the engine stops and the flap is opened immediately. There is a new closing attempt. No animal has to free itself under the overlying load of the flap as is usual with other manufacturers. Please note our video
Light control: integrated light control with simulation for sunrise and sunset as well as control for heating and ventilation
Own development and manufacturing, German support and repair workshop. Extra class chicken coops made of HPL. !
