Product Description
The electronic flap control HK-C is a compact development of the well-known JT-HK with the latest additions that increase usability without neglecting our well-known safety features.
As with JT-HK, all connections are available for an external button or the external remote display. Even the connection for a radio remote control is available in the device.
Newly added and unlike the previous model, we have now given the possibility to adjust the shut-off current when opened. With this function, a motor and gearbox gentle operation of the HK-C is possible.
A rotary switch with 4 positions allows the weight adjustment of the flap from under 1 kg to over 2.5 kg
Position 0 0.4 – 1.0 kg. Position 1: 1.0 – 1.5 kg. Position 2: 1.5 – 2.5 kg. Position 3 ≥ 2.5 kg
We have also adopted this very frequently used function from the previous model. Every chicken owner knows their ladies, each chicken has its own character. So it is even in the evening when it says „So girls off to the house“, but would like to stay one or the other, still a little outside.
To avoid having to adjust the light sensor values, you can set a delay of 30 minutes. Once the light value is reached, the flap remains open and waits for 30 minutes, so you can be sure that all chickens are in the barn.
The light sensor or Twilight sensor has pre-set values, which work best thanks to many years of experience. However, you can change the setting afterwards. As the installation location is crucial for this.
Different modules can improve usability and you can adjust the device to your needs. Because every hutch is different.
The automatic chicken flap or HK-C flap adjuster has an overload protection, which switches off when the slider is blocked or when the weight is too high. The HK-C is suitable for indoor or outdoor mounting and does not open in thunderstorms (lightning). For indoor mounting, an outdoor light sensor is required. Item no. : 1663LDR_1/1 available from 1 – 8 metres
To detect the flap condition from a distance when e.g. the flap around the corner, you can connect a remote display. Which is equipped with very bright LEDs, which shows you the condition open, closed or opened / closed by hand. Item no. : 142 cm
If your run is fenced or equipped with an aviary, you can use either an external button or a radio remote control. With both items, you can operate the flap control manually.
Wired push button 1 – 8 metres, item no. : 229 radio remote control with 1 transmitter, item no. : 231 with 2 transmitters, item no. : 281

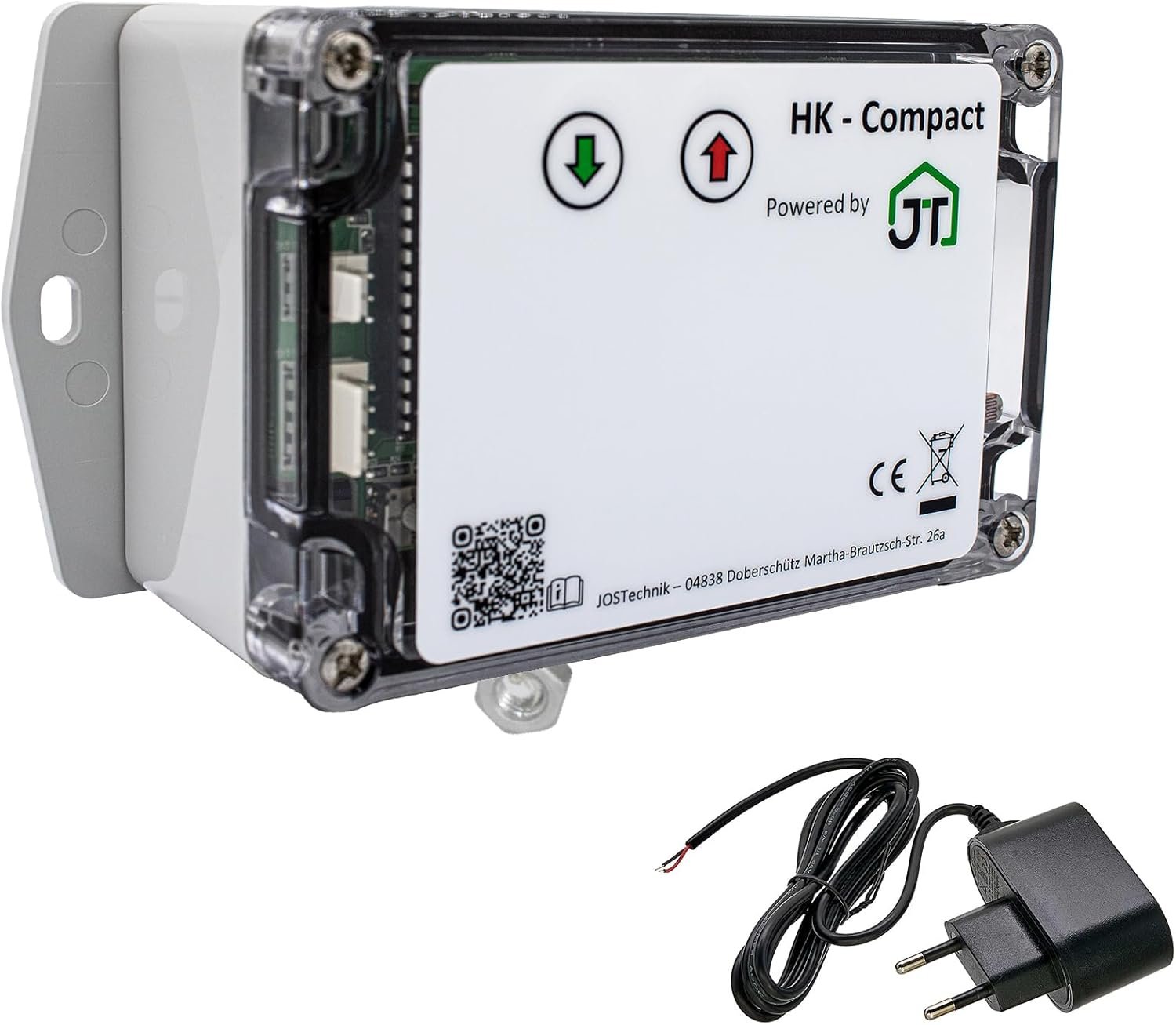

Package includes:
HK-Compact flap adjuster with internal light sensor LDR and coiled pull cord with mounting nut. Dimensions: Width 150 mm, length 80 mm, height 60 mm. Dimensions without wall bracket: Width 120 mm, length 80 mm, height 55 mm power supply 230 V / 12 V DC (approved for indoor use. Order number: 226 included
Do you have any questions or would like to order the HK-Compact? We are happy to advise you and help you find the perfect solution for your chicken coop!
HK-BAT New Model 2022
Compatible with all JOSTechnik flaps
HK-C can work with all JosTechnik flaps. For the flaps with self-locking, a sufficient overrun for the locking is adjustable. Choose from the different sizes with or without self-locking (SV) in the shop of JOSTechnik
230 x 340 mm or 230 x 340 mm SV 300 x 450 mm or 300 x 450 mm SV 340 x 550 mm or 340 x 550 mm SV 420 x 370 mm organic chickens 485 x 740 mm XXL (not recommended for battery operation)
Model 2025 – HK-Compact
Mains powered and twilight sensor controlled automatic chicken flap
JOSTechnik HK-Compact
Our emergency stop and emergency opening function protects your animals from injury and stress. No animal has to free itself under the overlying load of the flap, as is so common with all other manufacturers
Thanks to the adjustable motor current, you can operate flaps up to 3 kg.
Opening and closing via light sensor Direct connection for external button and remote display Connection option for a radio remote control Connection option for a radio remote control 4 adjustable flap modes Activatable closing time delay Available as a frame device with self-locking
Specifications
Dimensions of the solar device Width 150 mm, length 80 mm, height 60 mm with wall tabs Power supply Power supply 230 V / 12 V DC (JOSTechnik item no. : 226) (approved for indoor use only) Flap weight 0.4 – 3.0 kg Optional connections directly External remote display, external light sensor, external push button, radio remote control ElektroG Reg. No. (W E E E) Registration number according to the Electrical and Electronic Equipment Act (ElektroG): DE58973207
HK-Compact Solo Device
The HK-BAT solo device can be combined with all conventional sliders / flaps. Automatically open and close stable doors.
The connecting cord between flap adjuster and flap is not included except for pre-assembled frame devices.
Other device types with innovative functions available as solo or frame devices. All devices from JOSTechnik with real emergency stop and emergency opening function.
Visit our shop from JOSTechnik
HK-Compact frame device with self-locking
HK-C frame devices are fully prepared for commissioning. Attach the set to the 4 mounting points in the frame in front of the stable entrance. Remove transport lock, supply voltage and you’re done. Frame devices are available for all device types with different functions in 4 different sizes, with and without additional extensive accessories Visit our shop from JOSTechnik
HK-BAT set with flap – accessories in the JOSTechnik shop
Assemble a HK-Compact set yourself. Choose the optimal size of the flap for your animals and learn more about the right accessories. All parts are matched and compatible.
Visit our shop from JOSTechnik
The connecting cord between flap adjuster and flap is not included except for pre-assembled frame devices.
Due to manufacturing, there may be slight scratches on the aluminium parts of the flaps, which do not affect the functionality and therefore are not a defect
Add To Basket
Add To Basket
Add To Basket
Add To Basket
Customer Reviews
3.2 out of 5 stars 3
—
3.6 out of 5 stars 24
—
—
4.0 out of 5 stars 81
Price
€75.00€75.00
— no data
€95.00€95.00
— no data
€140.00€140.00 €159.00€159.00
Timer
no data
✓
✓
✓
✓
✓
Real emergency stop and emergency opening function
✓
✓
✓
✓
✓
✓
Temperature sensor
no data
no data
no data
✓
no data
no data
Heating and ventilation control
no data
no data
no data
✓
no data
no data
Control attracting light
no data
no data
✓
✓
✓
✓
Battery operated or emergency power module
no data
no data
✓
no data
✓
✓
Various sizes available
✓
✓
✓
✓
✓
✓
Available as a frame device
✓
✓
✓
✓
✓
✓
Can be used indoors and outdoors
✓
✓
✓
✓
✓
✓
German support, own repair shop
✓
✓
✓
✓
✓
✓
Open and close with an additional remote control
For manual operation of the automatic chicken flap or Flap actuator With the wireless remote control, you can open or close the flap control wirelessly. After operating the wireless remote control, a complete cycle must always be completed before the flap adjuster goes back into the automatic When ordering together with the flap actuator named devices, the wireless remote control is installed. Otherwise, it can be easily retrofitted, as it is attached to existing connection. Not suitable if a solar energy set is selected as a power supply, as the receiver constantly draws electricity
Outdoor light sensor from JOSTechnik.
In low light conditions, replace the internal light sensor with our outdoor light sensor. With up to 8 metres of cable, you can place the sensor in a place that receives as uniform light as possible.
Button for hand operation for opening and closing.
Often bought when the flap is not easily accessible for the pet owner. For example, if the flap is mounted in the hutch, the flap can be operated by hand via the button from the outside.
Remote display – with the Power XLED you can see the condition of the flap from a distance
You can use the additional 12V outputs in the device to install a remote display.
Ultra-bright LED lamps for status display of the flaps from JOSTechnik. Red LED display for open and LED green for closed
internal light sensor
outdoor light sensor
Button hand operation
Remote display
Light sensor / twilight controlled. The electronic poultry flap automatically opens and closes the door or flap on the chicken coop using a cable pull and twilight and protects the animals from predators and external influences
Emergency stop and emergency opening function. If there is an animal under the flap when closing, the engine stops and the flap is opened immediately. There is a new closing attempt, this up to twice. No animal has to free itself under the load of the flap.
Easy to install and button which allow manual opening and closing from the outside
Individually adjustable motor current: thanks to a rotary switch, you can adjust the motor shut-off current in 4 levels
Own development and manufacturing, German support; available by phone and email. Other device types with additional functions and sizes available from JOSTechnik as well as spare parts and accessories, such as Suitable LED lamps
